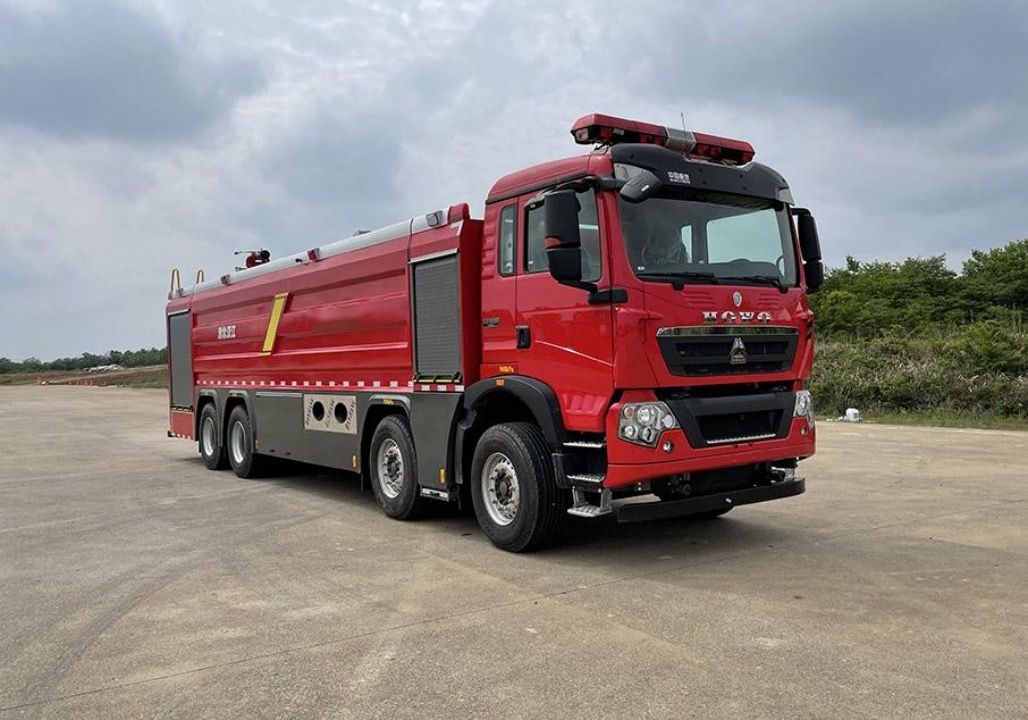

HOWO 8X4 25ton Water-Foam Tank Fire Fighting Truck Water-Foam for Sale

Chassis Information

Wheelbase: 1950+4600+1400mm

Drive : 8×4 (Germany MAN original double cab technology)

ABS anti-lock braking system;

Brake type: double circuit air brake;

Parking brake type: spring energy storage air brake;

Auxiliary brake type: engine exhaust brake;

Power: 372kW (1900r/min)

Torque: 2500 Nm @ (1050～1350r/min)

Emission standard: Euro VI

Vehicle parameters  Information

Total weight: 42650kg

Passengers: 2

Maximum speed: 100km/h

Allowable load of front axle/rear axle: 44000kg (9000+9000+13000+13000kg)

Liquid load: 20000kg water + 5000kg foam

Dimensions (length × width × height): 11900mm × 2540mm × 3600mm

Fuel system: 300 liter fuel tank

Fire Pump:

Pressure: ≤1.3MPa

Flow: 6000L/min@1Mpa

fire monitor

Pressure: ≤0.8Mpa

Flow: 4800L/min

Range: ≥80 (water), ≥70 (foam)

Fire monitor type: Manually control the fire monitor, which can realize horizontal rotation and pitching

Fire monitor installation location: top of the pump room

Foam proportioner:

Type: negative pressure ring pump

Proportional mixing range: 3%, 6% adjustable in two levels

Control mode: manual

Lighting system:

LED lights on the left and right upper parts of the vehicle.

The LED remote control rotatable searchlight on the top of the rear (lifting 1 meter, with pneumatic buffer).
