Sitrak Water Tank Fire Truck

The 16-ton heavy-duty large-flow water tank fire truck is innovatively designed in combination with advanced design concepts at home and abroad and actual fire-fighting needs. The whole vehicle has a number of safety protection measures, and its technical and performance parameters are at the domestic advanced level.

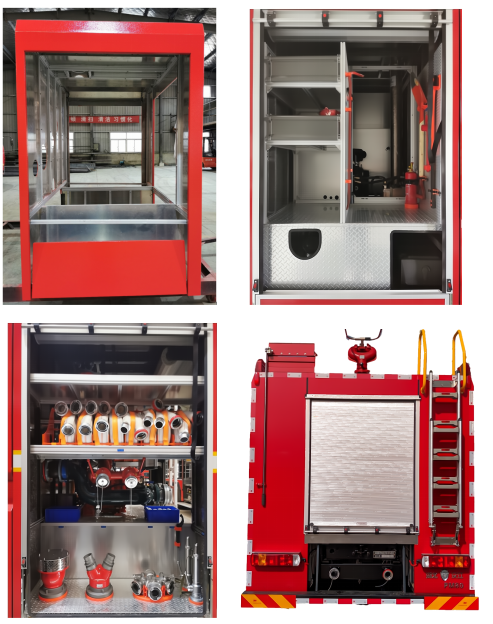

The Sinotruk Shandeka series 6×4 chassis is selected, the vehicle has a large amount of fluid, and is equipped with a conventional fire extinguishing system, which is suitable for fighting Class A fires in industrial and civil buildings, and can also fight Class B fires in petrochemical, coal chemical, and oil depots; alloy body , light weight, high strength, good corrosion resistance, can carry a variety of emergency rescue equipment. This vehicle can also carry out relay water supply, which is the first choice fire extinguishing tool for urban emergency rescue fire brigade and enterprise full-time fire fighting unit.

1. Chassis:

Manufacturer: Sinotruk Sitrak

Model: ZZ5356V524MF5

Wheelbase: 4600+1400mm

Drive form: 6×4 (man original double cab technology)

Tire specification: 385/65R22.5/315/80R22.5/10

ABS anti-lock braking system;

Service brake type: double circuit air brake;

Parking and parking type: spring energy storage air brake;

Auxiliary brake type: engine exhaust brake

2.Engine:

Model: MC13.54-61 in-line six-cylinder, liquid-cooled, supercharged intercooled, direct-injection diesel engine (Germany MAN technology)

Power: 400kW

Torque: 2508(N·m)

Emission standard: Euro VI

Vehicle parameters:

Full load weight: 32200 kg

Passengers: 2+4 (persons) original double-row four-door

Maximum speed: 90km/h

Allowable load of front axle/rear axle: 35000kg (9000kg+13000kg+13000kg)

Liquid capacity: 16000 L

Dimensions (length × width × height): 10180mm × 2530mm × 3780mm

Fuel system: 300 liter fuel tank

Generator: 28V/2200W

Battery: 2×12V/180Ah

Transmission: Manual Transmission

3.water system

3.1. Fire pump:

Pressure: ≤1.3MPa

Flow: 80L/S@1.0MPa

3.2. Fire monitor

Pressure: ≤1.0Mpa

Flow rate: 60 L/S

Range: ≥70 (water)

Fire monitor type: Manually control the fire monitor, which can realize horizontal rotation and pitching

Fire monitor installation location: top of the vehicle

4.Tank:

Liquid capacity: 16000 L water

Tank body material: water tank high-quality carbon steel, bottom plate thickness 5mm, side plate thickness 4mm, top plate and partition 3mm, inner wall heavy anti-corrosion

Pipe material: high quality steel
